主要規格：
1 公稱寬度Norminal width;
180型：印花幅寬度1620mm; 200型：印花幅寬度1850mm，同時適用1620mm.
220型：印花幅寬度2050mm，同時適用1850mm. 240型：印花幅寬度22000mm，同時適用2050mm.
260型：印花幅寬度2400mm，同時適用2200mm. 280型：印花幅寬度2600mm，同時適用2400mm.
300型：印花幅寬度2800mm，同時適用2600mm. 320型：印花幅寬度3000mm，同時適用2800mm.
2 公稱速度Norminal speed:80m/min
3.印花套色數Number of colors: 4,6,8,10,12,14,16,20
4.適用圓網周長Circumference of screens:640.726.820.914.1018
5.對花精度：相鄰花位誤差不大于0.1mm，累積對花誤差不大于0.3mmRepeat precision: the deviation is less than 0.1mm between two consecutive screen,accumulative repeat deviationis less than 0.3mm
6.刮漿方式Squeegee:磁棒、刮刀或磁棒刮刀組合Magnetic Bar、Scrapping Knife or Magnetic Bar-Scrapping Knife Combination
7.烘房節數 Number of dryer section:3.4.5
8.烘房網站Working temperature of dryer:蒸(0.3Mpa)載熱油with heat transfer oil≤150℃
9.進出布方式：平幅進布，平幅干落布
Infeed and delivery systen:infeed in open-width,plaiting in dry in open-width

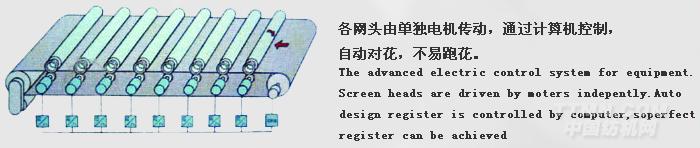

10.傳動方式：圓網集體傳動或獨立傳動
Driving system:all screen are driven by the same driving shaft of driven seperately主要規格：
