一、機器用途：

本機兼具B702A型搖絞機的優點,具備B702A型搖絞機特點、功能，采用雙電機傳動,斷紗能自停,是較理想的紗線成絞設備。

二、主要技術參數：

1、形式：雙面上喂入框式

2、錠數： 80錠

3、紗框周長調節范圍：

1300mm-1650mm

1600mm-2100mm

4、紗框轉速：1：200轉/分  2：240轉/分

5、導紗桿每行程距離：600mm-1250mm

6、外形尺寸：6110×1910×1760mm(長×寬×高)

7、電機功率：0.75KW

8、重量：1800公斤

注：本機型在完善客戶所需導紗桿每行程距離600mm-1250mm要求情況下，同樣完成80錠絞紗工藝，生產工藝絞紗產量可提高25%。

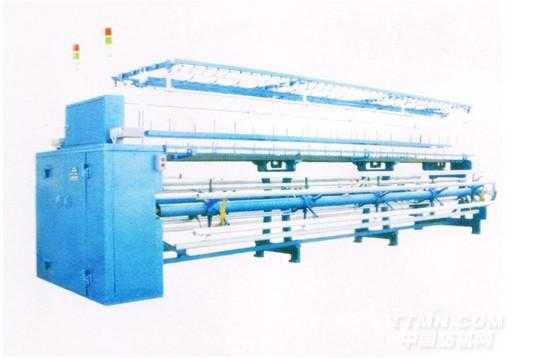

B701-1A-type rolling cutter machine

1, the machine uses:

The machine combines B702A-type stranding machines shake the advantages B702A-type rolling cutter machine with features, functions, using dual-motor drive, break yarn, who could stop, is an ideal yarn into a twisting device.

Second, the main technical parameters:

1, Type: double-sided on the feeding frame

2, Spindle number: 80

3, yarn box circumference adjustment range:

1300mm-1650mm

1600mm-2100mm

4, yarn frame speed: 1:200 r / min 2:240 rev / min

5, guide bar yarn distance of each stroke: 600mm-1250mm

6, Dimension: 6110 × 1910 × 1760mm (length × width × height)

7, motor power: 0.75KW

8, weight: 1800 kilograms

Note: This model in improving the customer's needs yarn guiding rod travel distance of 600mm-1250mm each request case, the same process to complete 80 hank, yarn production process yields can increase by 25%.
